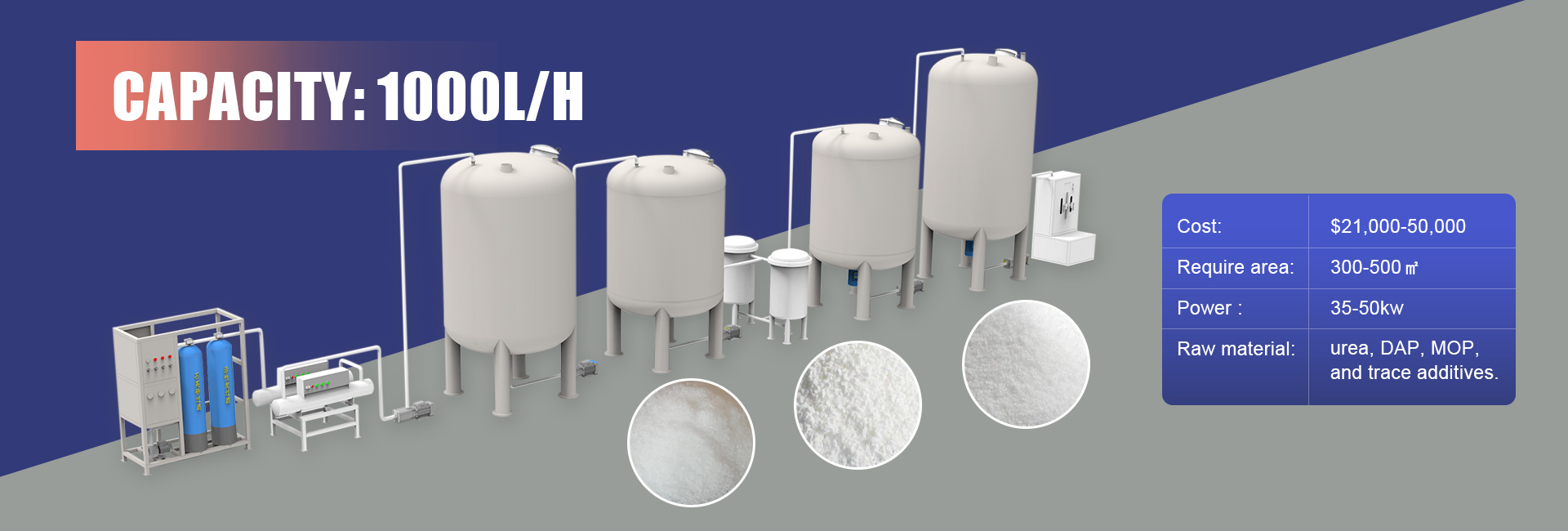

1000 L/H NPK liquid fertilizer business plan

If you plan to invest in a 1000 L/H liquid NPK fertilizer production line, YUSHUNXIN can provide you with a complete solution. The line includes batching, mixing, reaction, storage, and filling systems, all designed for stable and efficient production. The total investment usually ranges from $21,000 to $100,000, depending on your plant layout and automation level. With low operating cost, short production time, and simple operation, this project is an ideal choice for fertilizer manufacturers. Contact us today to get your customized design and quotation for liquid NPK fertilizer machines.

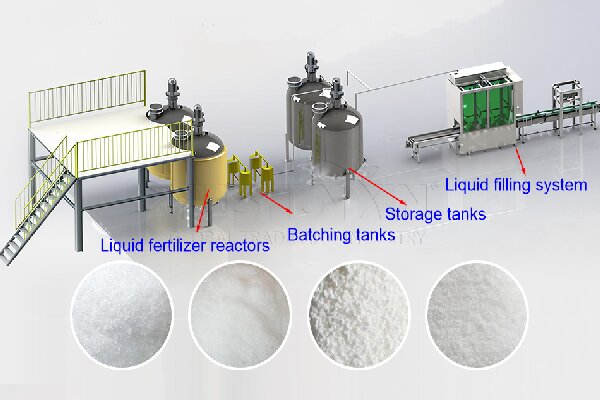

Key Equipment for 1000 L/H NPK Liquid Fertilizer Production Line

There are six main equipment for 1000L/H npk liquid fertilizer manufacturing

Get Solution

NPK Batching System: The NPK batching system ensures accurate measurement of urea, DAP, MOP, and trace additives. YUSHUNXIN provides both dynamic and static batching machines, which offer high precision, multiple hoppers, and quick response. For 1000 L/H NPK liquid fertilizer lines, we recommend a 500 kg per batch dynamic batching system to guarantee consistent NPK ratios and reduce material waste.
Liquid Mixing Machine: With efficient stirring and a corrosion-resistant design, the liquid mixing machine can fully dissolve raw materials and keep the liquid uniform. For 1000 L/H NPK liquid fertilizer production, we recommend a 1 m³ mixing tank, which ensures continuous operation and nutrient homogeneity.
Additive Adding Tank: When you need to add chelating agents (such as EDTA, DTPA) or trace elements, the additive adding tank is the right choice. It comes with stirring and metering systems to improve fertilizer quality. For 1000 L/H liquid NPK fertilizer plants, we recommend a 1 m³ additive tank to meet precise formulation needs.
Reactor Tank: The reactor tank provides a reliable place for liquid NPK fertilizer to mix with different ingredients. It supports chelation and reaction steps with temperature control, continuous stirring, and a built-in filtering system to remove impurities. Normally, the whole process only takes 2–3 hours. Two 1 m³ reactor tanks are recommended to ensure full reaction and stable product quality.
Storage Tank: The storage tank safely holds finished liquid fertilizer before filling. For 1000 L/H NPK production, we recommend a 1 m³ storage tank made of corrosion-resistant material. Its white appearance makes it easy to observe the remaining liquid fertilizer level, helping operators manage inventory more efficiently.
Liquid Filling System: The liquid filling system is essential for packaging. It supports both bottles and drums, and ensures fast, accurate filling. For 1000 L/H liquid fertilizer lines, a semi-automatic filling machine is ideal because it reduces labor requirements and maintains high efficiency.

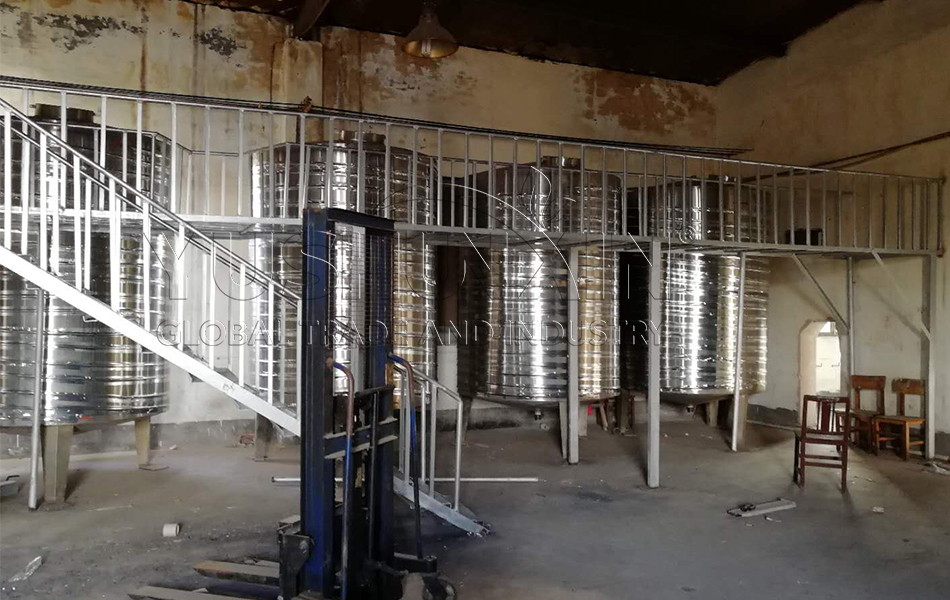

Cost of 1000 L/H NPK Liquid Fertilizer business plan

The total cost of a 1000 L/H NPK liquid fertilizer production line is about $120,000–$200,000. This investment covers key equipment such as batching systems, mixing tanks, reactor tanks, storage units, and filling machines. The exact price depends on automation level, number of tanks, and packaging solutions. Choosing the right configuration helps you lower labor costs, improve efficiency, and expand production capacity. Many liquid fertilizer manufacturers recover their investment quickly through stable operation and reduced waste. YUSHUNXIN offers customized designs to match your budget and production goals. If you want a clear cost breakdown and ROI analysis, contact us today. Our team will provide a tailored quotation for your liquid NPK fertilizer project.

Get Solution

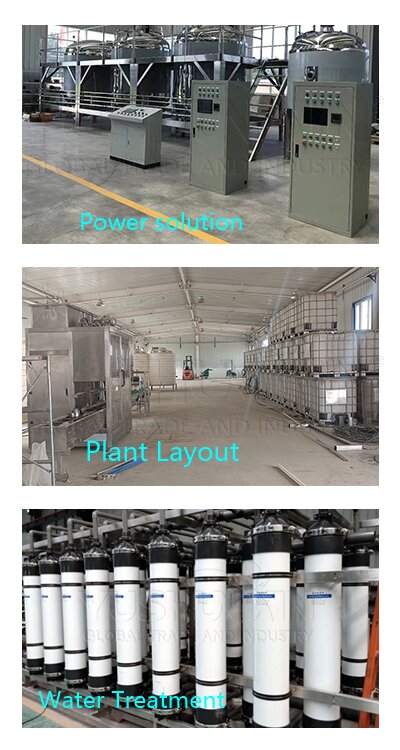

Power Supply, Water Source and Plant Layout Requirements

The following outlines the electricity, water, and floor space consumption for a 1000 L/H NPK liquid fertilizer business plan.: Power Supply
The 1000 L/H liquid NPK fertilizer production line operates on electricity with a total power demand of 30–35 kW. This ensures stable and efficient running of all machines. If your plant has an unstable grid, YUSHUNXIN can also provide a diesel generator as a reliable backup.

Water Source
As for water, you can use tap water to make liquid NPK fertilizer .However, to ensure fertilizer consistency and prevent impurities, we recommend using our stainless-steel water treatment equipment. It delivers clean and safe process water, which improves both production stability and final product quality in your liquid NPK fertilizer factory.

Plant Layout
For a 1000 L/H capacity, the complete liquid NPK fertilizer line requires about 250–300 m². This area includes production, raw material storage, and product filling. YUSHUNXIN provides customized layout design to optimize space use, improve workflow efficiency, and reduce unnecessary labor and transportation costs.

Top 3 Advantages of YUSHUNXIN 1000L/H Liquid Fertilizer Production Line

Short Production Period

The liquid NPK fertilizer can be fermented and processed within 72 hours. You save time and get faster product turnover.
Low Operation Cost

YUSHUNXIN's liquid fertilizer production equipment consumes less energy and water. This reduces running costs and improves overall profit.
Simple Operation and No Pollution

The production line includes a smart control cabinet. You can operate and monitor the whole process remotely with ease. At the same time, the 1000L/H liquid NPK fertilizer production process produces no wastewater, gas, or solid residue. All liquid raw materials can be recycled, which makes the system eco-friendly.
